X7™ Field Edition

Parti in composito avanzato

La stampante 3D industriale robusta e trasportabile facilmente per affrontare con prontezza le sfide della catena di fornitura in località remote.
Get a Quote
X7 FE Webpage Header Image

Stampante 3D

X7 fe heroX7 fe overview exploded view

Dimensioni esterne

Larghezza
36 in (914 mm)
Profondità
36 in (914 mm)
Altezza
48 in (1220 mm)
Peso
189 lbs (86 kg)

Volume di lavoro

Larghezza
13 in (330 mm)
Profondità
10.6 in (270 mm)
Altezza
7.9 in (200 mm)

  • Risoluzione Asse Z

    50 μm - 250 μm

  • Materiali di stampa

    Composite Base Filaments, Continuous Fibers

  • Geometria interna delle parti

    Closed Cell Infill with Continuous Fiber Reinforcement

  • Piano di stampa

    Precision Ground Composite

  • Tecnologia di stampa

    Continuous Fiber Reinforcement (CFR)

Materiali

Materiali compatibili

Dettagli del sistema

About the X7 Field Edition

Pound for pound, watt for watt, Markforged printers are the most capable 3D printers on the planet.

Print parts stronger than aluminum with unique continuous carbon fiber reinforcement. No bulky heated chamber required, which saves space, weight, and energy.


Stiff, lightweight aluminum unibody construction with precision-machined gantry. 189 pounds fully loaded. 3ft x 3ft footprint.

Draws less power than a pair of incandescent light bulbs. Uses standard mains power: 100-240 VAC, 150 W (2 A peak).

Laser-assisted calibration helps operators keep the machine tuned up through rough handling, transportation, and fluctuating temperatures.

X7™ Field Edition Materiali

Strong, durable, impact-resistant, and flame-retardant. Print with Markforged's full range of Composite Base materials and Continuous Fibers.

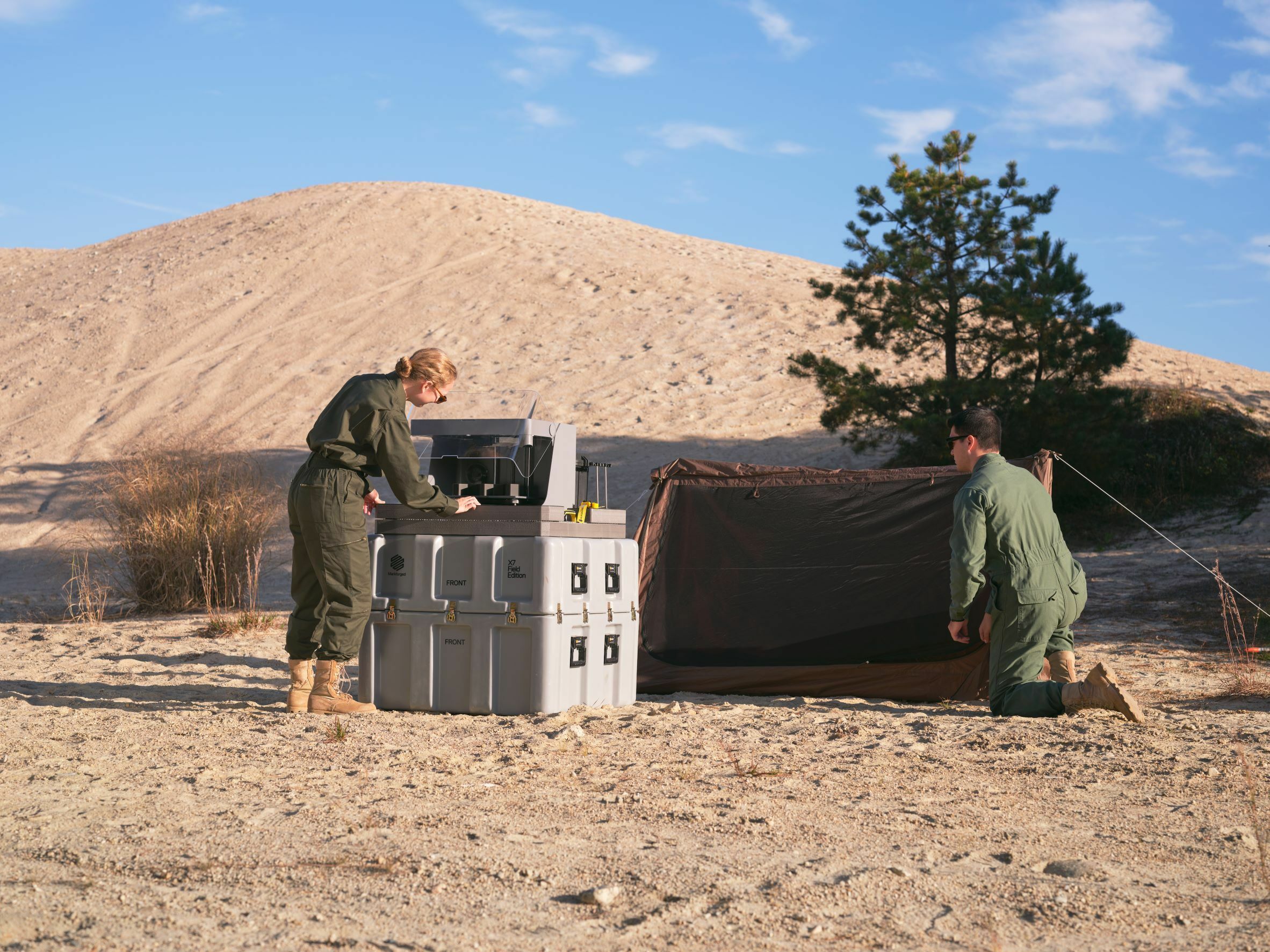

X7 FE Dune Camplg

Continuous Fiber Reinforcement. Stronger Parts, Made Easy.

Get a Quote
X7 process

One for home, one for the road

X7 Standard offers identical printing capabilities as X7 FE, in a smaller footprint.

Collaborate on designs with engineers iterating in parallel at the mothership print farm. Click print to deploy the best solution directly in the field.

Even between sips of internet, the link from farm to field can solve problems 10x faster than one printer alone.
