Metal X™ System

Metal Parts

The safe and accessible end-to-end metal 3D printing solution for functional metal parts, next-day.
Request a Quote

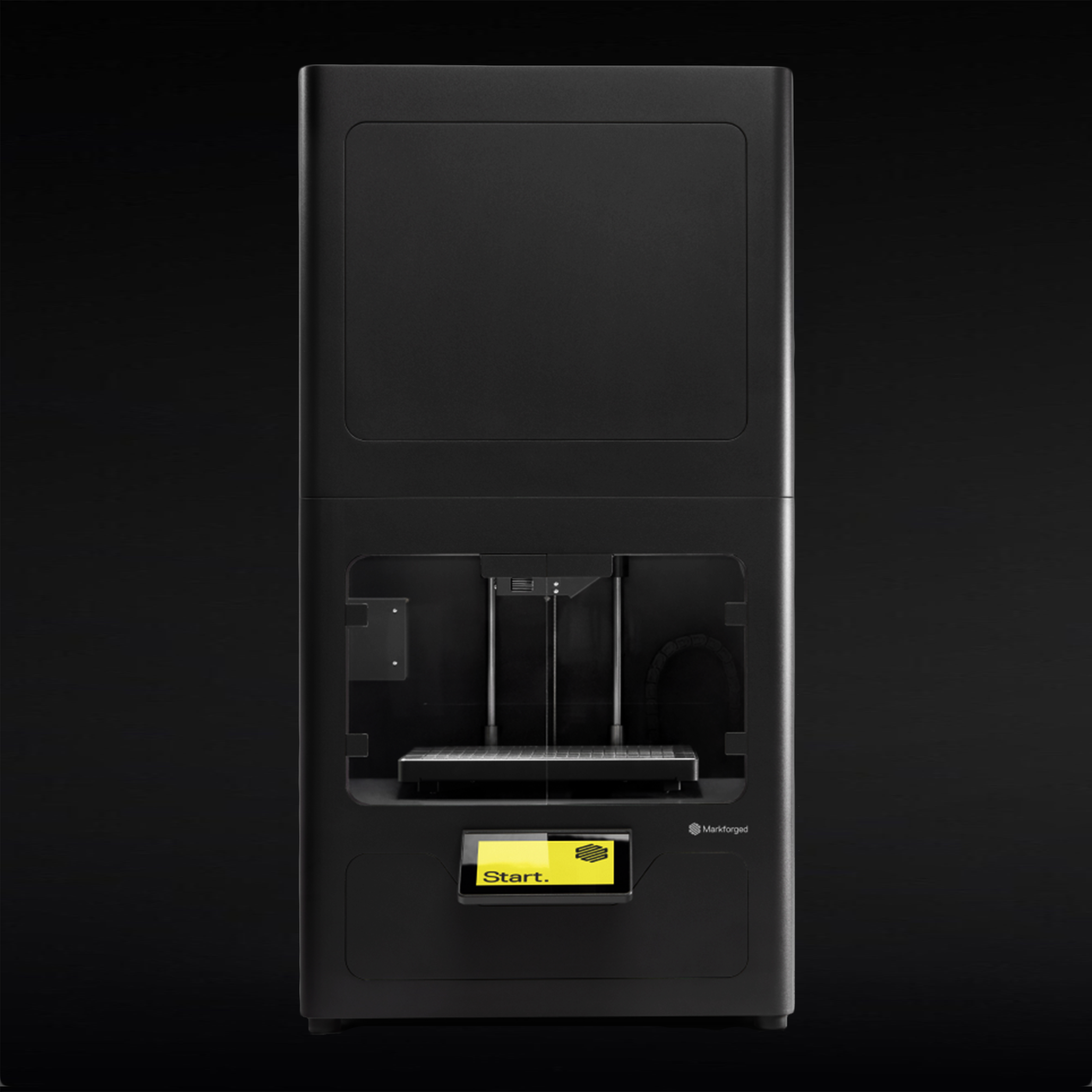

Metal X Webpage Header
Download Datasheet

3D Printer

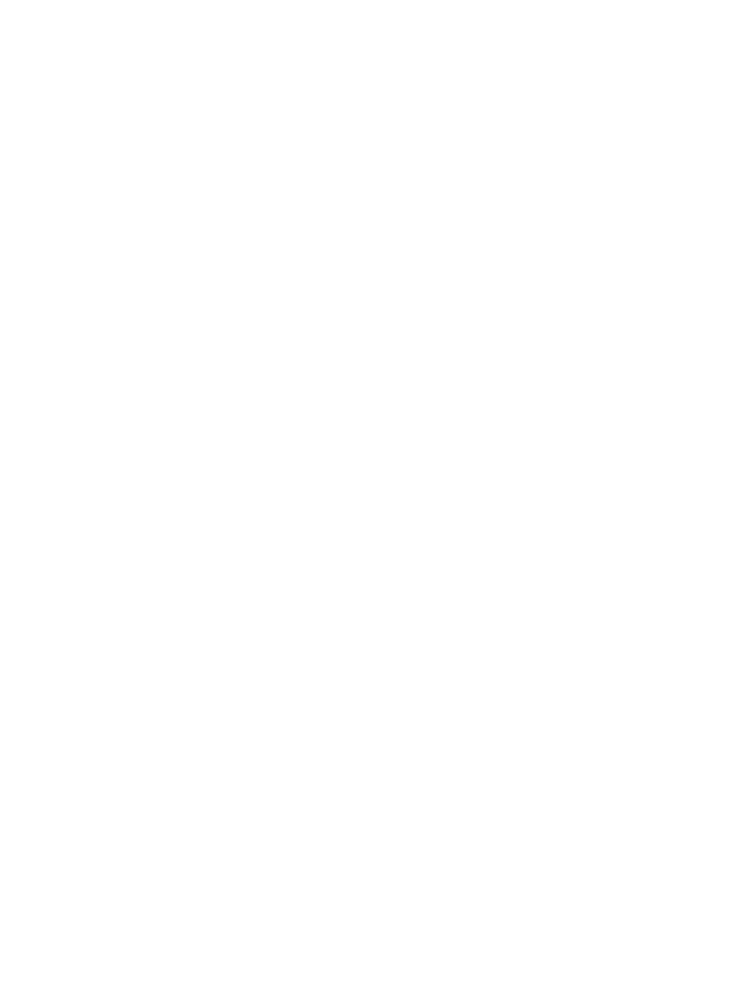

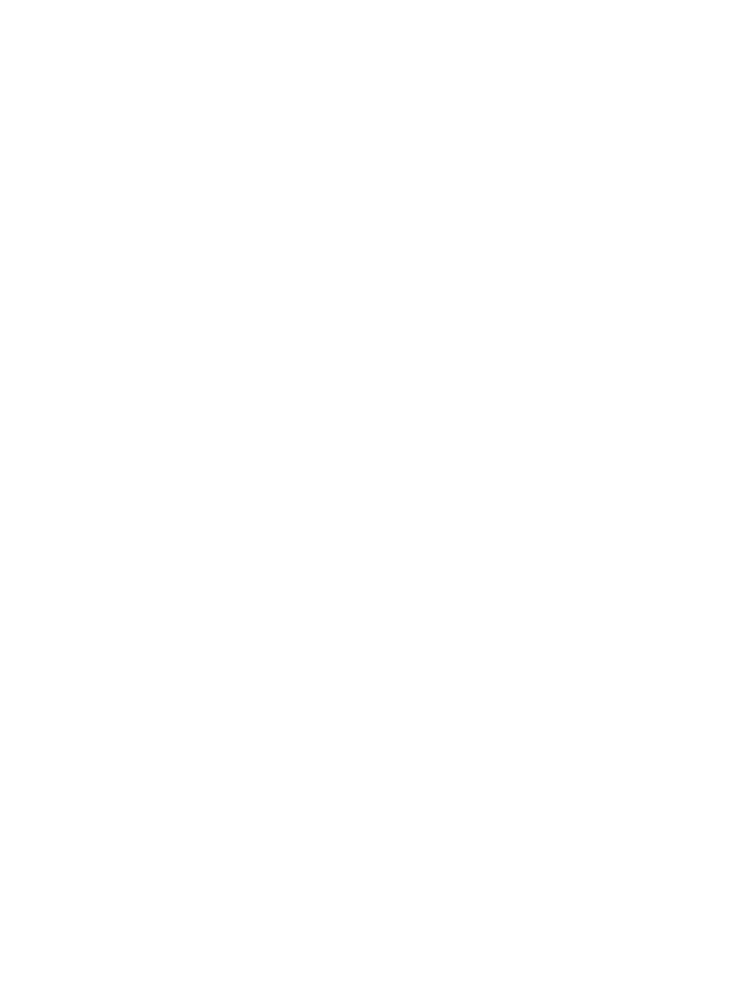

Metalx overview spec front schematicMetalx overview spec isometric schematic

Physical Dimensions

Width
575 mm
Depth
467 mm
Height
1120 mm
Weight
75 kg / 165 lbs

Build Volume

Width
300 mm
Depth
220 mm
Height
180 mm

  • Z Layer Resolution

    85 μm - 170 μm (Post-Sinter)

  • Printing Media

    Bound Powder Filament

  • Internal Part Geometry

    Closed Cell Infill (Triangular) or Solid Parts

  • Print Bed

    Heated, Auto Leveling, Replaceable Print Sheets

  • Printing Process

    Metal FFF

Wash & Sinter

Wash-1

  • External Dimensions:
    609 x 685 x 1,067 mm
  • Weight:
    136 kg (300 lbs)
  • Washing Time:
    12-72 hrs typical
  • Solvent:
    Opteon SF-79
Wash-1 Overview Spec Isometric Schematic

Sinter-2

  • External Dimensions:
    1,200 x 700 x 1,500 mm
  • Weight:
    350 kg (772 lbs)
  • Washing Time:
    17-31 hours
  • Solvent:
    18,356 cu cm
  • Peak Internal Temp:
    1,300° C / 2,372° F
Sinter-2 Overview Spec Isometric Schematic

Materials

Compatible Materials

  • Release Material

    Ceramic — Becomes Powder During Sintering Process

  • Media (Spools)

    Bound Powder Metal Filament

System Details

Metal X Printer

The Markforged Metal X is a new kind of metal printer. By printing metal powder bound in a plastic matrix, Markforged has eliminated many of the safety risks associated with traditional metal 3D printers. That means no loose powder, no lasers, and none of the traditional safety precautions. It’s safe to use in a shop environment with minimal facility upgrades.

In practice, the Metal X is essentially a very advanced FFF 3D printer. Featuring a precision machined gantry, a heated chamber and print bed, and advanced extrusion hardware, the Metal X is equipped to reliably print you durable parts. It is intentionally designed, with wear components and consumables — including print sheets, nozzles, and brushes — accessible and trivial to swap.

Wash-1

The Wash-1 is a solvent-based debinding system. It primarily uses Opteon SF-79, a high-performance fluid designed to offer superior cleaning power, higher efficiency, and safety in an environmentally sustainable way — Opteon SF-80 or Tergo Metal Cleaning Fluid can be substituted if needed.

The Wash-1 operates with simple ventilation and features an extremely simple user experience. It’s been tested and verified as a shop-safe system.

Sinter-2 and Sinter-1

The Markforged Sinter-2 and Sinter-1 are highly optimized tube furnaces used for sintering 3D printed metal parts. They provide leading edge sintering reliability and run times and are equipped with advanced safety features. The Sinter-2 is more advanced than the Sinter-1 — featuring a larger working volume, more precise temperature control, and a mechanical door interlock.

The Sinter-1 and Sinter-2 typically have run times between 26 and 31 hours. However, the Sinter-2 can process small parts in express mode, where it can sinter up to 250g of parts in just 17 hours.


Metal X™ System Materials

From stainless steel to copper, choose from a wide range of strong, durable, and capable materials.
Next Day Metal Parts Metal X Website Video Thumbnail

Simple and safe workflow designed for any business.

Request a Quote

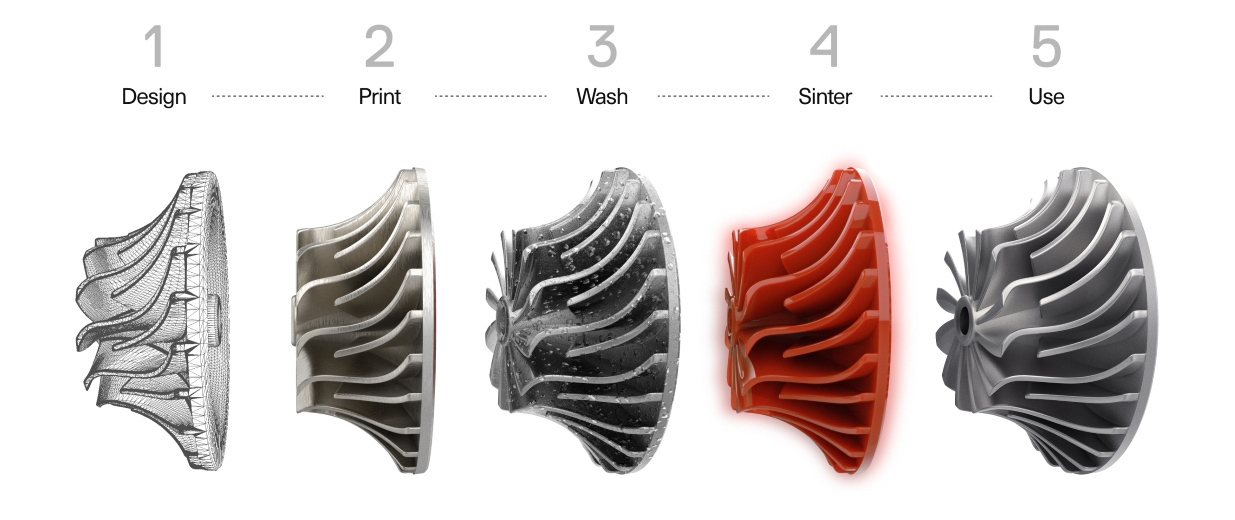

3 D Prining Materials Process Metal X slim

The Magic of Metal 3D Printing

The Metal X makes metal 3D printing simpler than ever before. Learn how you can go from design to functional 3D printed metal parts quickly, easily, and more affordably.

The Markforged Metal X additive manufacturing process combines metal injection molding (MIM) and fused filament fabrication (FFF) technologies together into Bound Powder Extrusion. BPE provides a simple, cost-effective way to create metal parts.
